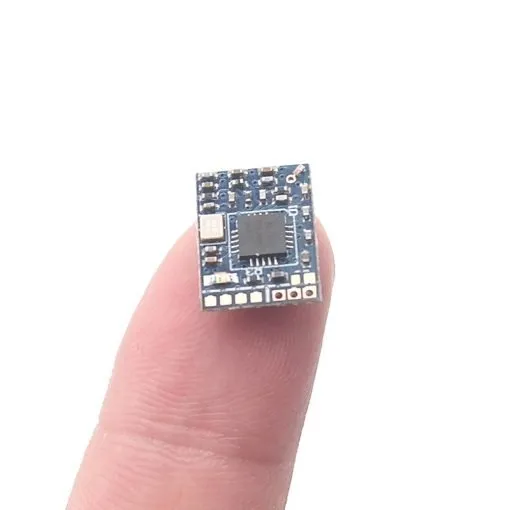

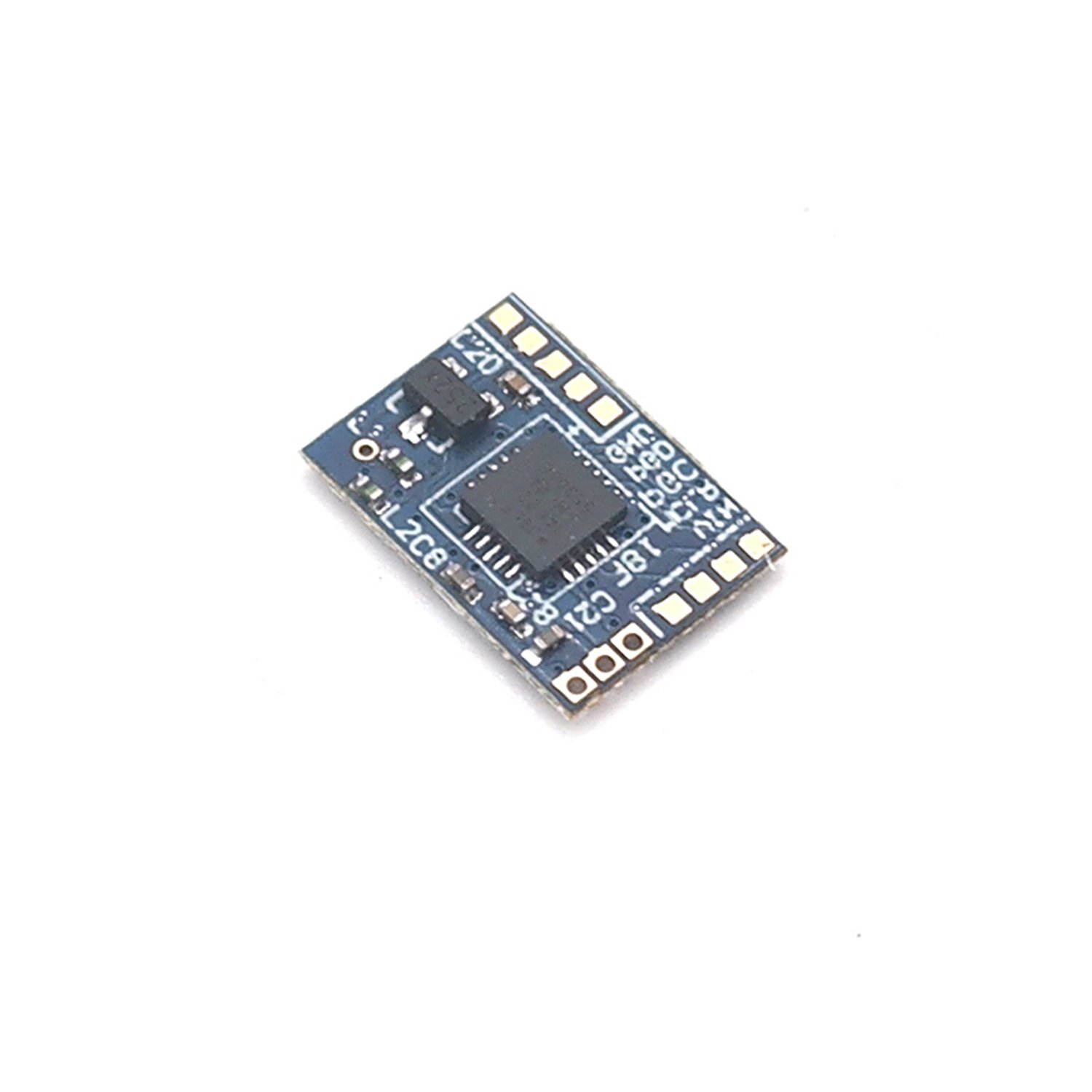

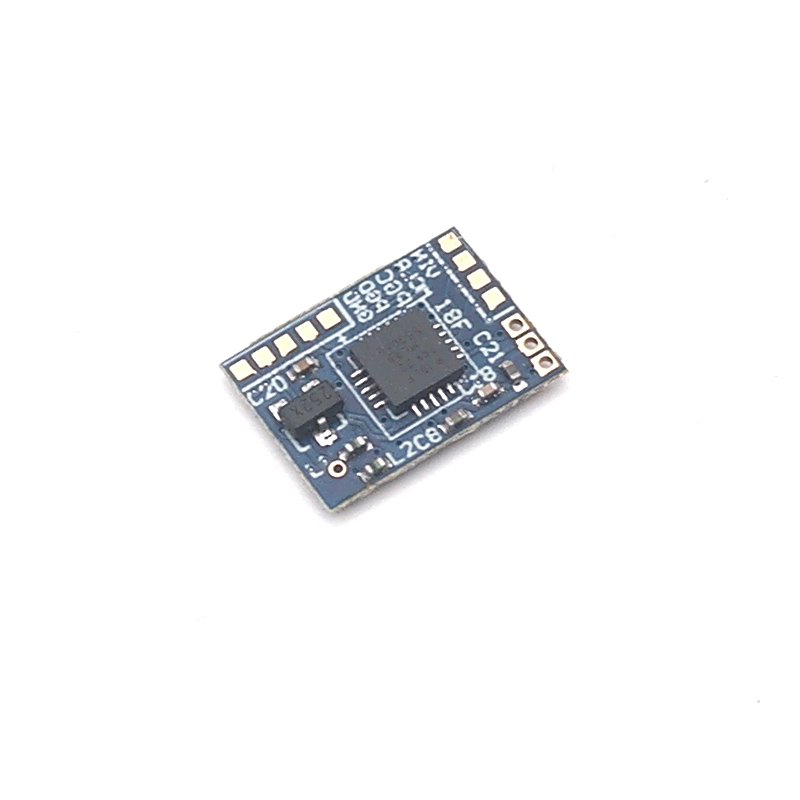

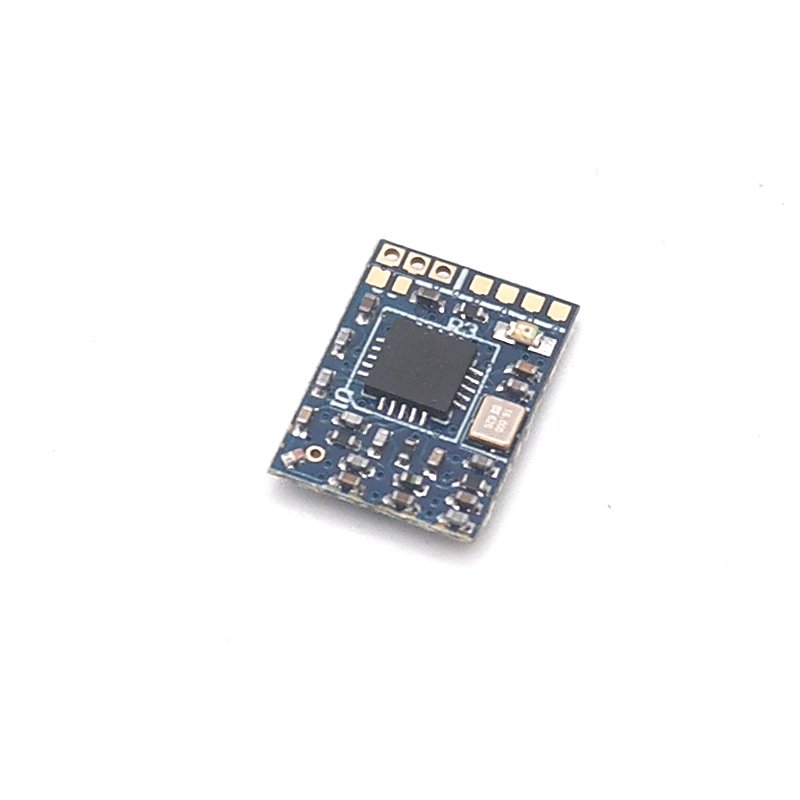

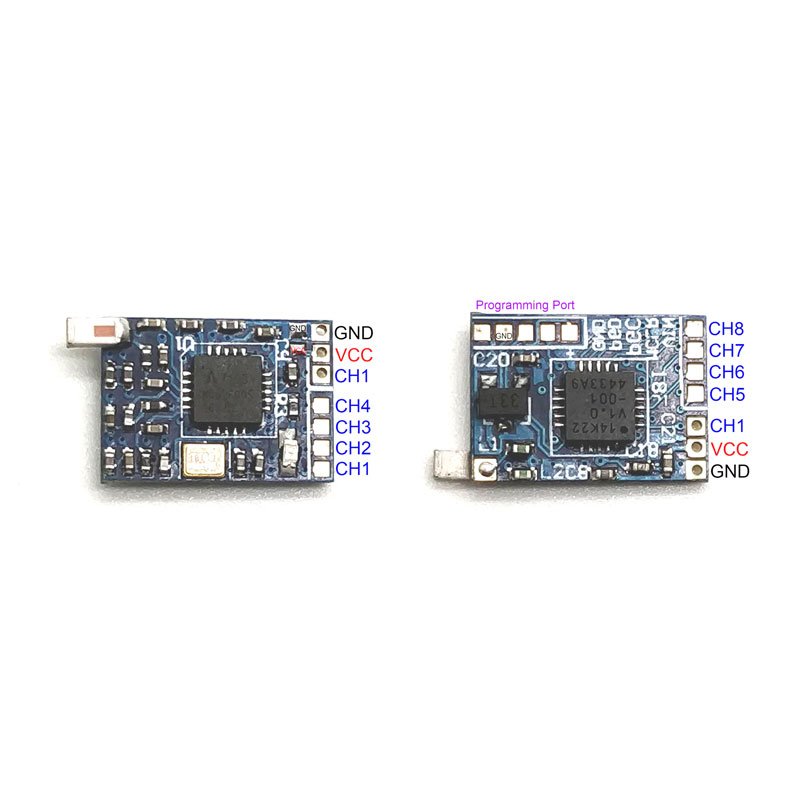

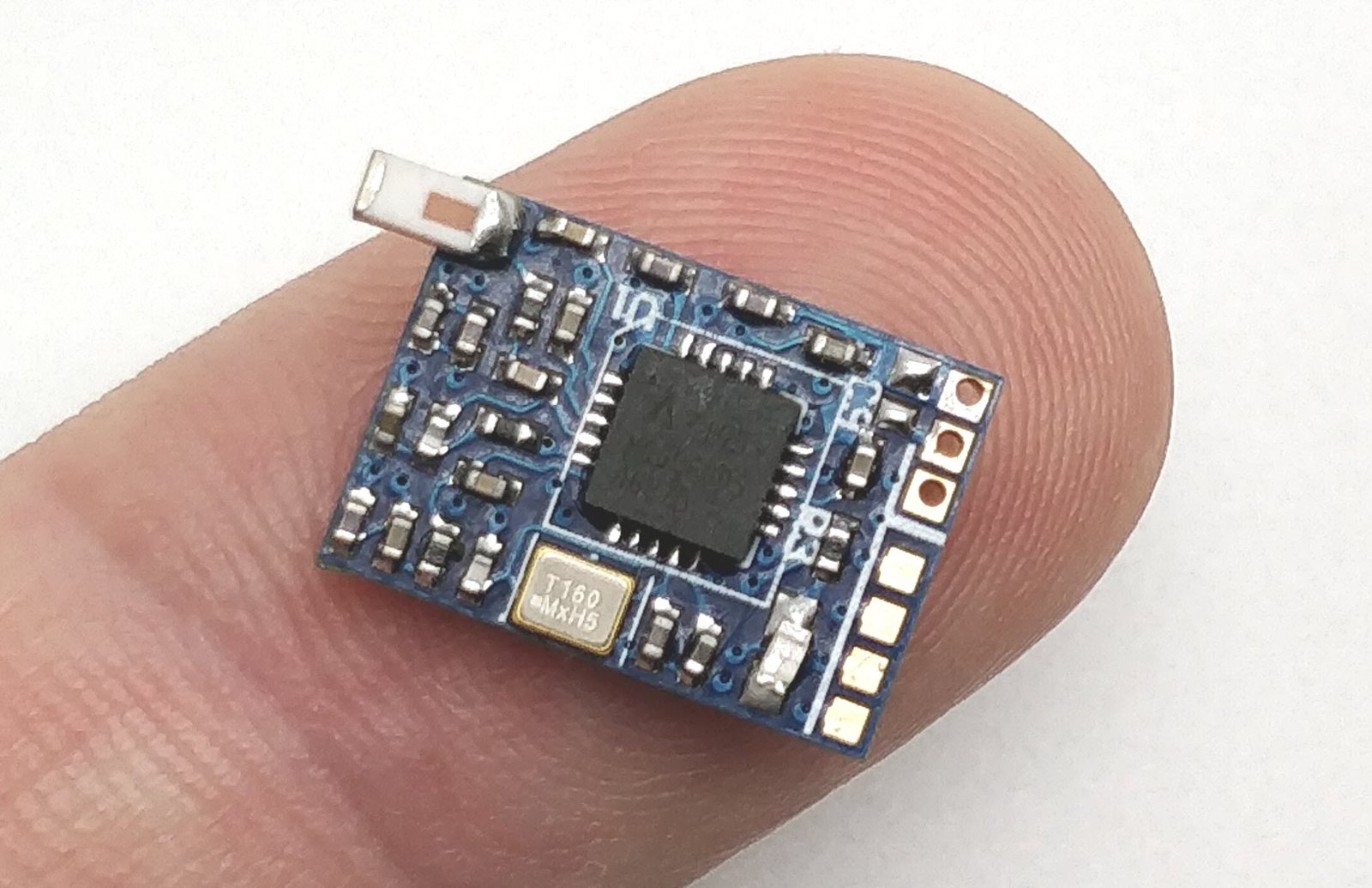

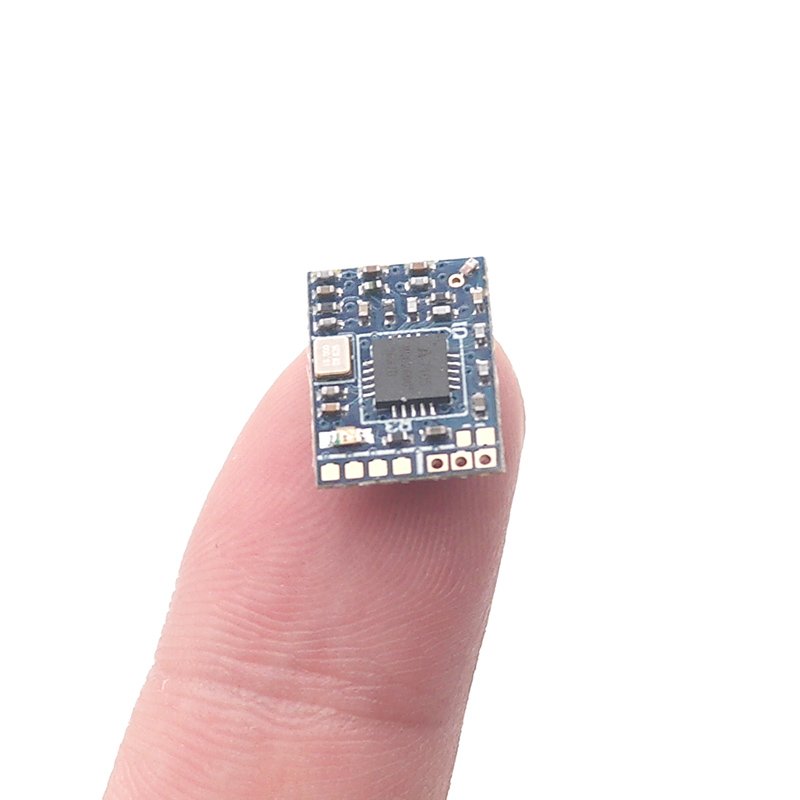

Item Name: DasMikro 8 Channel AFHDS Nano Surface Receiver
Frequency Band: 2.4 GHz AFHDS
Size (W*Hx*D): 14 x 10 x 4mm
Standard 2.4Ghz 8-Channel Receiver for Flysky Transmitter, compatible with Flysky GT2B, GT3B, GT3C, i6, i10, T6, CT6B, TH9X 2.4Ghz Transmitter AFHDS protocol. Ultra Compact size design with auto-bind.
There is no bind pin designed, the receiver has an “autobind” procedure just like with small quad-copters. When switched on, receiver tries to bind with transmitter for about 3s (led is blinking). If receiver find a transmitter (must be also in bind mode) then it recognize the transmitter and binds to it. If it can’t find any transmitter in bind mode nearby, it falls back to a previously binded transmitter identifier and binds to that. This way, you save an extra pin and just need to bind only once. After bind procedure, If reception is ok then led if on, if no reception at all led if off, if reception if bad led is blinking randomly.
1 x 8CH Nano Receiver
