DASMIKRO SANWA RECEIVER INTEGRATED WITH PN RACING 18A BRUSHLESS ESC DSK-172

Description

Description:

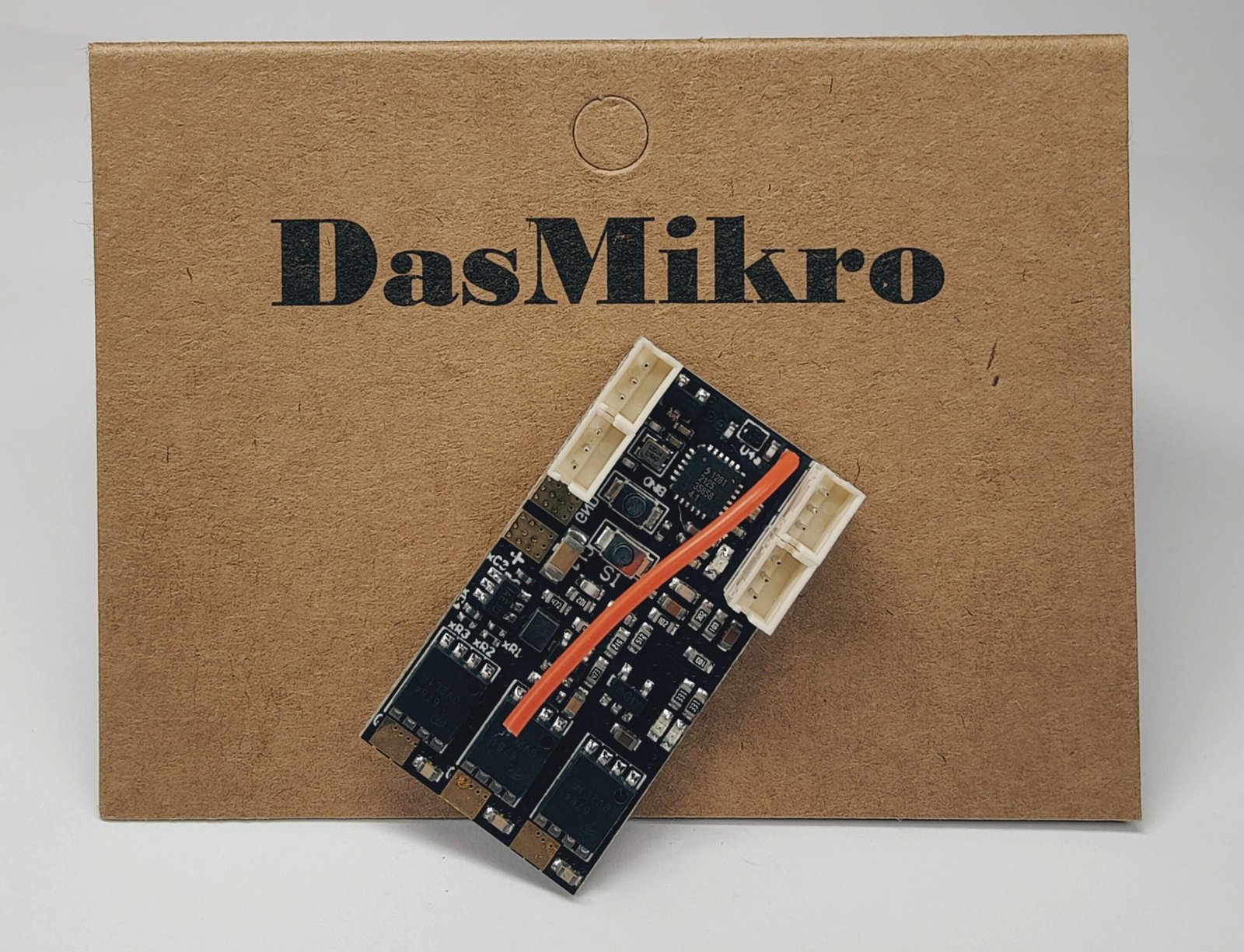

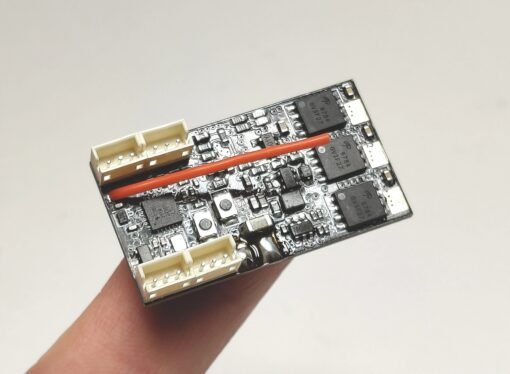

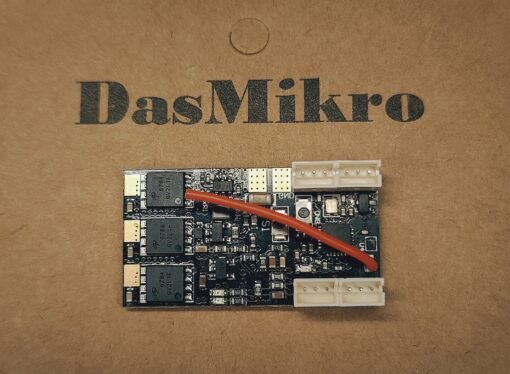

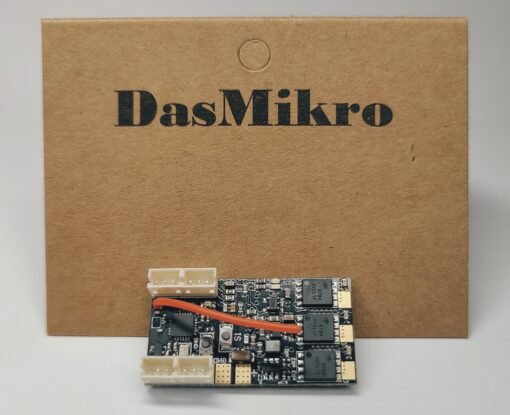

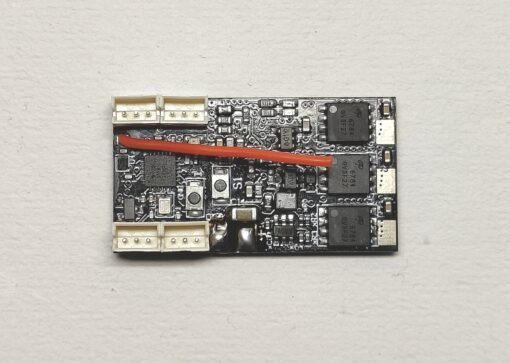

This is a micro Sensor-less Brushless ESC integrated with SANWA Receiver. It could be used for 1/28 1/24 and 1/18 2WD or AWD micro RC car.

SANWA Receiver Features:

* This receiver unit is Sanwa high speed FHSS-4 and FHSS-3 compatible

* 4 Channel high speed servo output

SANWA Receiver Specification:

PWM Channels: 4

RF: 2.4GHz

2.4G Protocol: FH-4/FH-3

Distance: >50m(ground)

Antenna: Single Antenna(32mm)

RSSI: Yes

Data Output: PWM

ESC Features:

•Specially designed for RC car and truck, with excellent starting up, acceleration and linearity features.

•Compatible with sensor-less brushless motor.

•3 running modes suitable for different applications

•Forward with brake mode / Forward-Backward with Brake mode / Forward-Backward no Brake Mode

•4 steps of maximum reverse force adjustment.

•Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag brake force adjustment and 4 steps of initial brake force adjustment.

•9 start modes from “Short” to “Smooth” to be suitable for different chassis, tires and tracks.

• 7 multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

• 8 steps of timing adjustment.

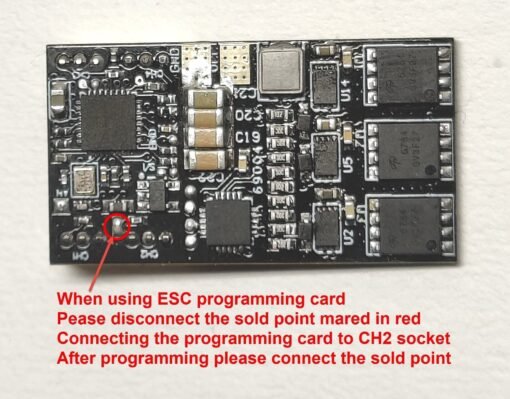

• User programmable. Supported as: The “SET” button on the ESC, the digital LED Programmer

ESC Specification:

Continues Current: 18A

Burst Current: 48A

Resistance: 0.01 ohm

Battery: 2S Li-Po/Li-Ion or 4-6 cells NiMH

BEC Output: 5V/3A

Size: 37mm x 20 mm x 7mm

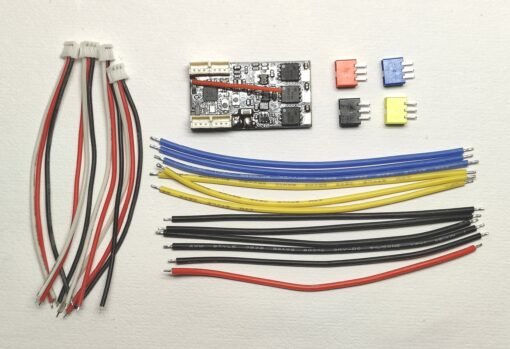

Package Included:

1 x RX-ESC

4 x 1.5mm 3P JST plug with high quality silicon cable

12 x 100mm high quality silicon cable (3 blue, 3 yellow, 5 black, 1 red)

4 x PH2.0 3P plug (for battery connection)

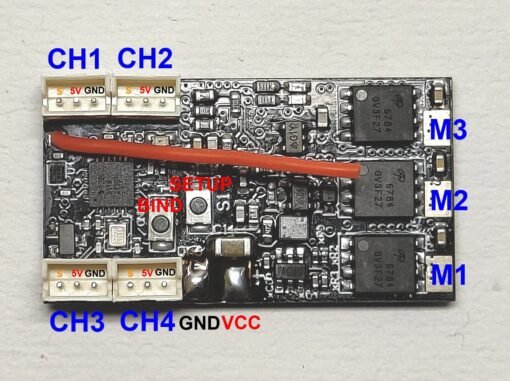

Wire Connection：
