DASMIKRO SUPER NANO DRIFT GYRO V5 DSK-175

Description

Description:

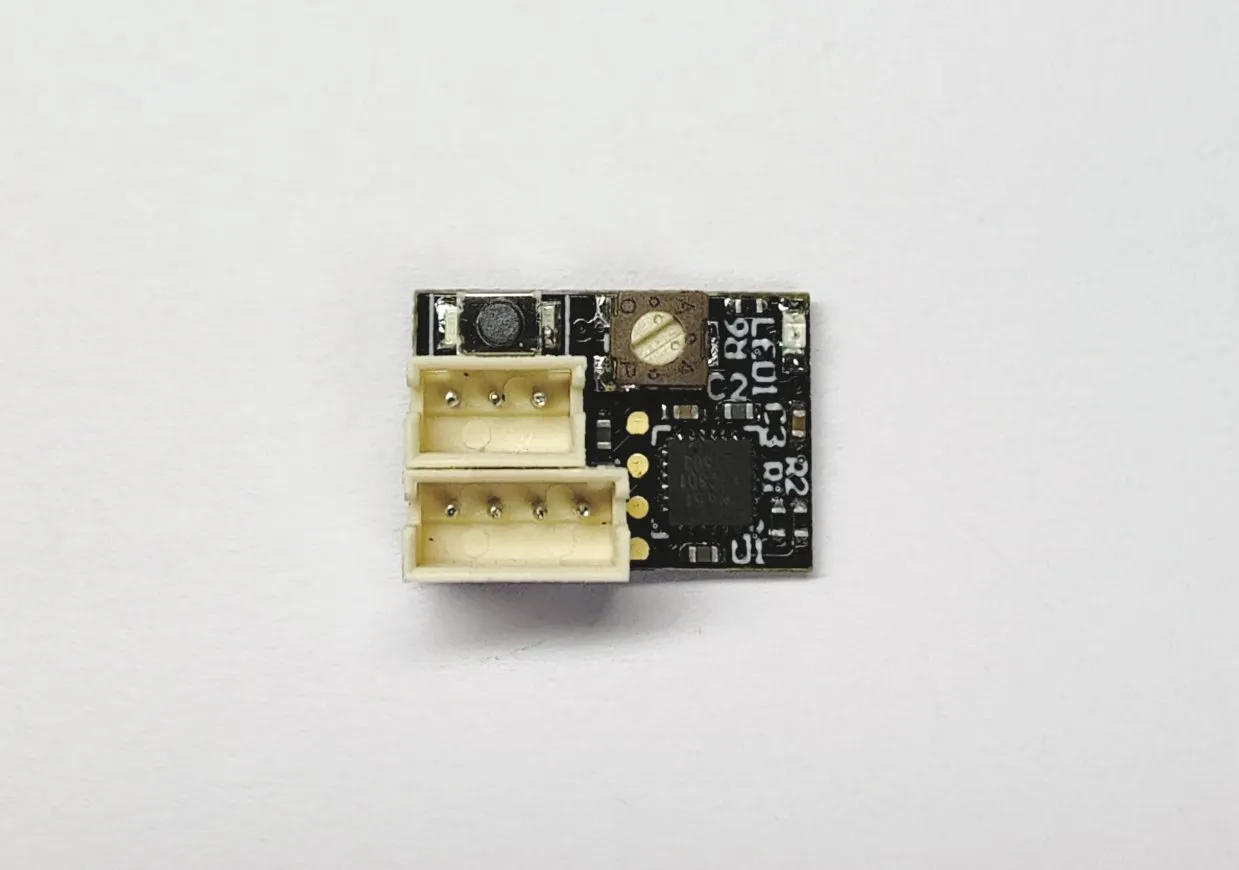

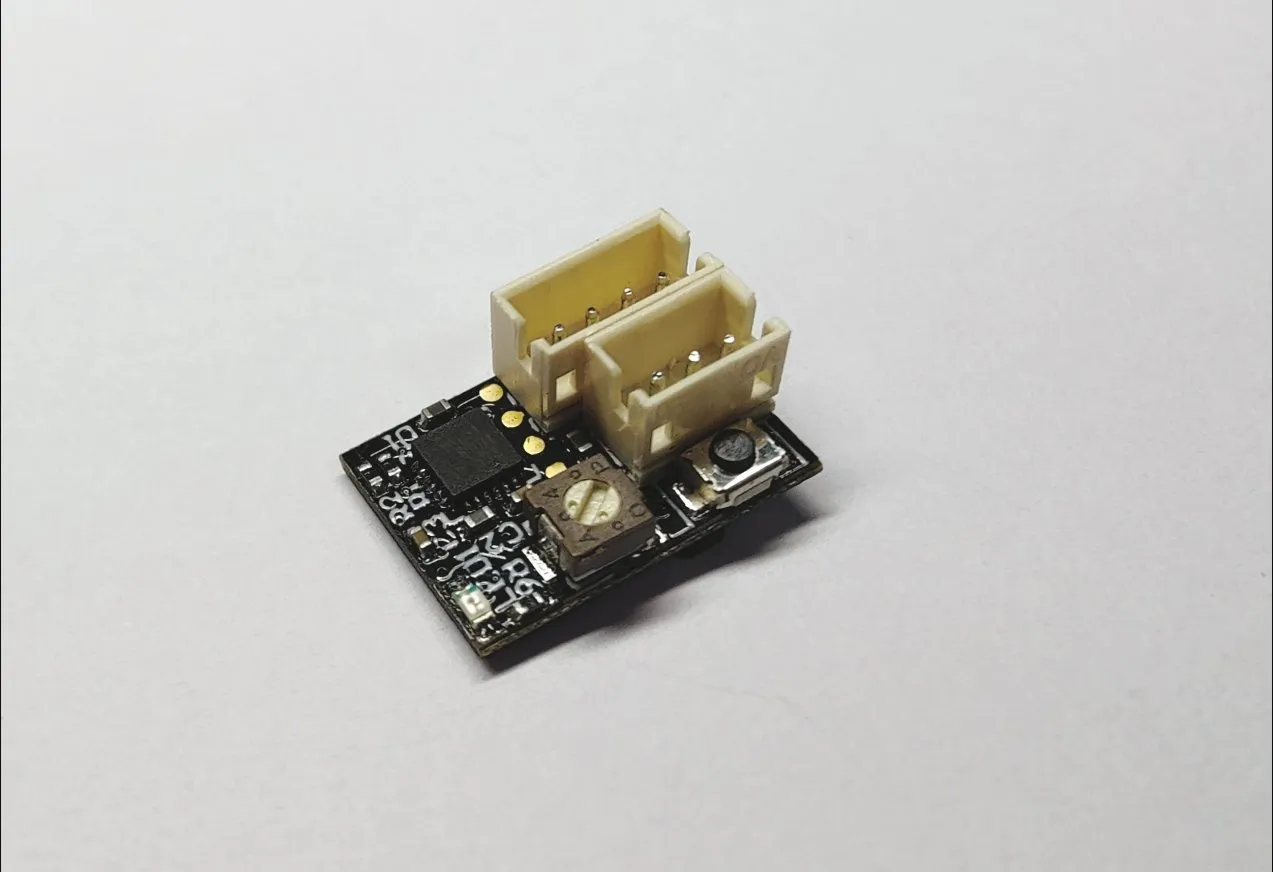

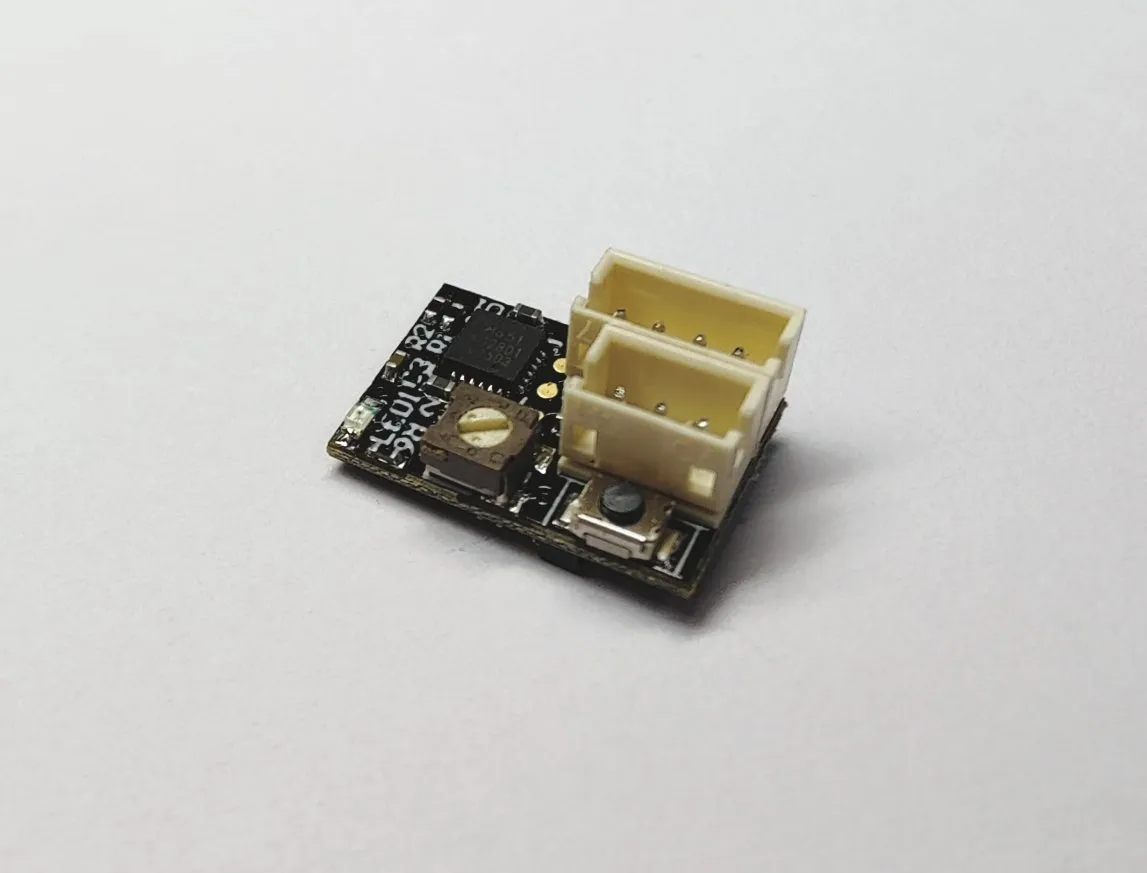

This GYRO unit is especially optimized for micro RC drift. It has stable performance in ultra-light weight and small size.

Features:

◆ compact design, suitable for mini and micro size RC drift car

◆ high quality gyroscope sensor with stable performance

◆ internal program optimized for RC drift

◆ support high voltage input: 3.7v-8.4v

Specification:

Dimensions: 14.5 x 10 x 6 mm

Working voltage: 3.7 ~ 8.4V

Weight：0.8g (without cables)

Current Drain：20mA/6V

Operating temperature：-10℃+70℃

Output Signal：1520uS（50Hz/333Hz）

Control System：PID Control System

Input & Output Plug：JST1.5mm

Package Included:

1 x GYRO

1 x 1.5mm 4P TO 3Px2 JST plug with high quality silicon cable

Wire Connection:
